Atom – Kleines und robustes 4G-Smartphone
Cerified by

Ultrakleines, robustes Smartphone für den Außenbereich

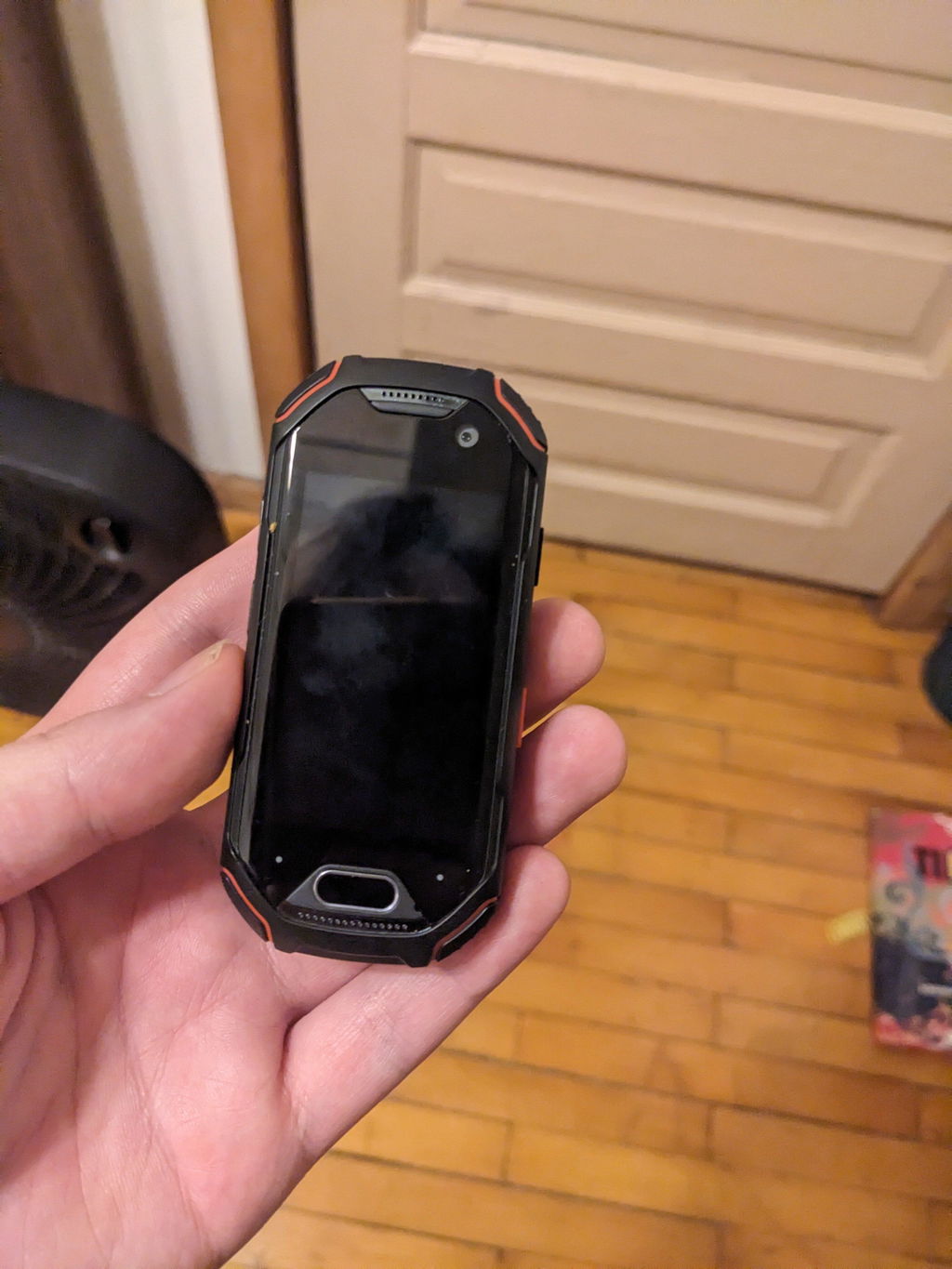

Wir stellen vor Atom
Atom ist ein kleines, kompaktes Smartphone, das nur 2,45 Zoll lang ist und damit sogar kleiner als Ihre Hand! Es kann sicher in Ihre Münztasche oder Handtasche gesteckt werden und spart so mehr Platz!

Klein, aber voll funktionsfähig
Mit Android-Betriebssystem, Atom ist mit den meisten Apps kompatibel, die Sie im Google Play Store finden. Trotz seiner geringen Größe Atom verfügt über fast alle Funktionen, die Sie im täglichen Leben benötigen, einschließlich Entsperren per Fingerabdruck, NFC, 64G-Speicher usw.

Robust, robust und langlebig
Mit der Schutzart IP68 und Corning Gorilla Glass Atom ist wasserfest, staubdicht und stoßfest, was es zu einem perfekten Telefon sowohl für Outdoor-Abenteuer als auch für den Alltag macht!

Fingerabdruck-Scanner
Klein, aber vollständig, Atom schützt Ihre Privatsphäre, indem es die Entsperrung per Fingerabdruck ermöglicht. Eine Entsperrzeit, die kürzer als ein Wimpernschlag ist, beeinträchtigt Ihr Mobiltelefonerlebnis überhaupt nicht.

2000-mAh-Akku
Dank seiner geringen Größe Atom ist energieeffizienter und kann mit dem wiederaufladbaren 2000-mAh-Akku lange arbeiten.

Maßgeschneidert für Outdoor-Enthusiasten
Die Unterstützung von Kompass, GPS und IP68-Zertifizierung durch Atom garantiert eine zuverlässigere Positionierung. Es ist für Menschen mit Abenteuerlust gedacht, die zuverlässigere Geräte für Offroad- und Trekking-Erlebnisse benötigen.

Maße

Unihertz Atom Specifications
Basic Information
Dimensions: 96 × 45 × 18 mmWeight: 108 g (With Battery)
CPU: Helio P23 Octa-Core, 2.0GHz
OS: Android 9.0
Memory: 4GB + 64GB
Battery: Non-Removable 2000 mAh
SIM Card Type: Dual Nano SIM Card
Micro SD: No
Display
Cover Glass: Corning Gorilla GlassMaterial: LCD
Display Size: 2.45 inches
Resolution: 240 × 432 pixels
Camera
Rear Camera: 16MP AFFront Camera: 8MP FF
Connectivity
Band: 2G GSM (Band 2/3/5/8), 3G WCDMA (Band 1/2/4/5/8), 3G TDSCDMA (Band B34/39), 3G CDMA2000 (Band BC0/BC1), 4G FDD-LTE (Band 1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B), 4G TDD-LTE (Band 34/38/39/40/41)Wi-Fi: WLAN 802.11 a/b/g/n/ac 2.4GHz/5GHz, Wi-Fi Direct, Wi-Fi Hotspot
Bluetooth: Bluetooth 4.1
NFC: Yes
Navigation: GPS + GLONASS
Features
Sensors: Fingerprint (Front-Mounted), G-Sensor, Gyroscope, Proximity, Ambient Light Sensor, CompassFingerprint: Yes
Facial Recognition: Yes
Infrared Port: No
USB: USB Type C
USB OTG: Yes
Programmable Key: Yes
Loudspeaker: Yes
3.5mm Headphone Jack: Yes
Wireless Charging: No
FM Radio: Yes
Misc
Color: BlackSplash, Water & Dust Resistant: IP68 Water / Dust Resistant
Shock Resistant: Yes
SAR Value: Head SAR (EU) : 0.775 W/kg, Body SAR (EU) : 0.809 W/kg, Head SAR (US) : 1.323 W/kg, Body SAR (US) : 1.260 W/kg
Certification

In the Box

GENERAL QUESTIONS
1. Go to Settings ->System ->About Phone ->IMEI number 1 and 2.
2. Look for the IMEIs on the box of the phone (if you still have it).
Settings ->System ->About phone ->Wireless update
Please follow these steps to clear cache before searching for the update again:
Settings -> App Notifications ->See all apps ->Show System (top right corner with 3 dots) ->Wireless update-> Clear Data and Cache
Reset to Factory Settings (When your phone can be turned on)
Settings ->System ->Reset Options ->Erase all data (factory reset)
Reset to Factory Settings (When your phone cannot be turned on)
Power off your phone -> Press and hold the Power and Volume up buttons -> After your phone vibrates, keep holding the buttons for 5 seconds to enter Recovery mode -> Press the Volume up and down buttons to select the option to clear data or restore your device to its factory settings -> then press the Power button to confirm -> Reboot your phone.
If you have forgotten your phone password and want to unlock it, you will have to restore your device to its factory settings. Then you can set it up again and set a new screen lock.
However, all data on your phone will be erased and cannot be restored. It is recommended that you confirm whether you have backed up your phone data on the cloud or by other means. It is also recommended that you confirm whether you or someone else has changed the PIN/password. If you still cannot recall the password, refer to last Question to restore your device.
English, English(UK), German, French, Italian, Portuguese, Spanish, Russian, Dutch, Japanese, Simplified Chinese, Traditional Chinese(Zhuyin, Cangjie, Quick input).
For the keyboard input of other languages, we may consider adding them in the future if we receive enough demands.
On the other hand, Android system supports a wide range of languages, with which you will be able to turn on touch screen input as a supplement.
TELECOM COMPATIBILITY
1. Check the feedback from other users here.
2. Please find the the phone's supported bands in product specs and check if those meet your sim-card carrier's needs or contact your carrier.
* Due to different carrier's policy regarding to unlocked phones, LTE wireless service may not be available even if listed bands are supported by your carrier. When this happens, please contact your carrier for more details.
Our phone can work fine in Verizon network. However, as it is not certified by Verizon, you cannot activate your new SIM card with it. Please activate the new SIM card with another Verizon certified device and then use it in your Unihertz phone.
TECHNICAL ISSUES (PROBLEM SHOOTING)
Please follow the guide to do a micro-calibration for your phone (you can also contact us for a video guide):
1. Please clear the dust in your proximity censor hole on top of your phone.
2. Input *#3377# in the Dial-up interface.
3. Click Distance calibration.
4. Follow the guide to finish the process.
Please permit the apps to run in the background by activating them in the following three settings:
1. Settings ->DuraSpeed
2. Settings ->Intelligent assitance ->App blocker
3. Settings ->App¬ification ->See all apps ->this app ->Battery ->Battery optimization and Background restriction->Don't optimize
You can also watch a video guide here.
It is not advised to downgrade your smartphone since there might be compatibility issues.
Please contact your operator and check the APN parameters.
1. Go to Sound Recorder app and run a recording test.
2. Check whether your SIM card works well on the other phone.
1. Please check if this only happened to some or all of friends you called.
2. Stay in the same location and insert your SIM card into another Android phone and the same issue arises.
3. Turn on call record in the call interface to record a call, then check whether the sound recorded is normal.
1. Please send us a full screenshot of your battery usage in Settings ->battery ->battery usage.
2. Follow these steps to capture the battery log and send it to service@unihertz.com for further analysis.
REPAIR AND WARRANTY
For repair, please send without the accessories.
For replacement or refund, please send with accessories in one package.
The broken glass is not covered by warranty.
Please send the smartphone back to us after negotiating with service@unihertz.com as we do not provide phone screen separately. Repair or replacement fee may apply.
The repaired/ replaced device will get extra 90 days warranty or the remaining original warranty period, whichever is longer.
