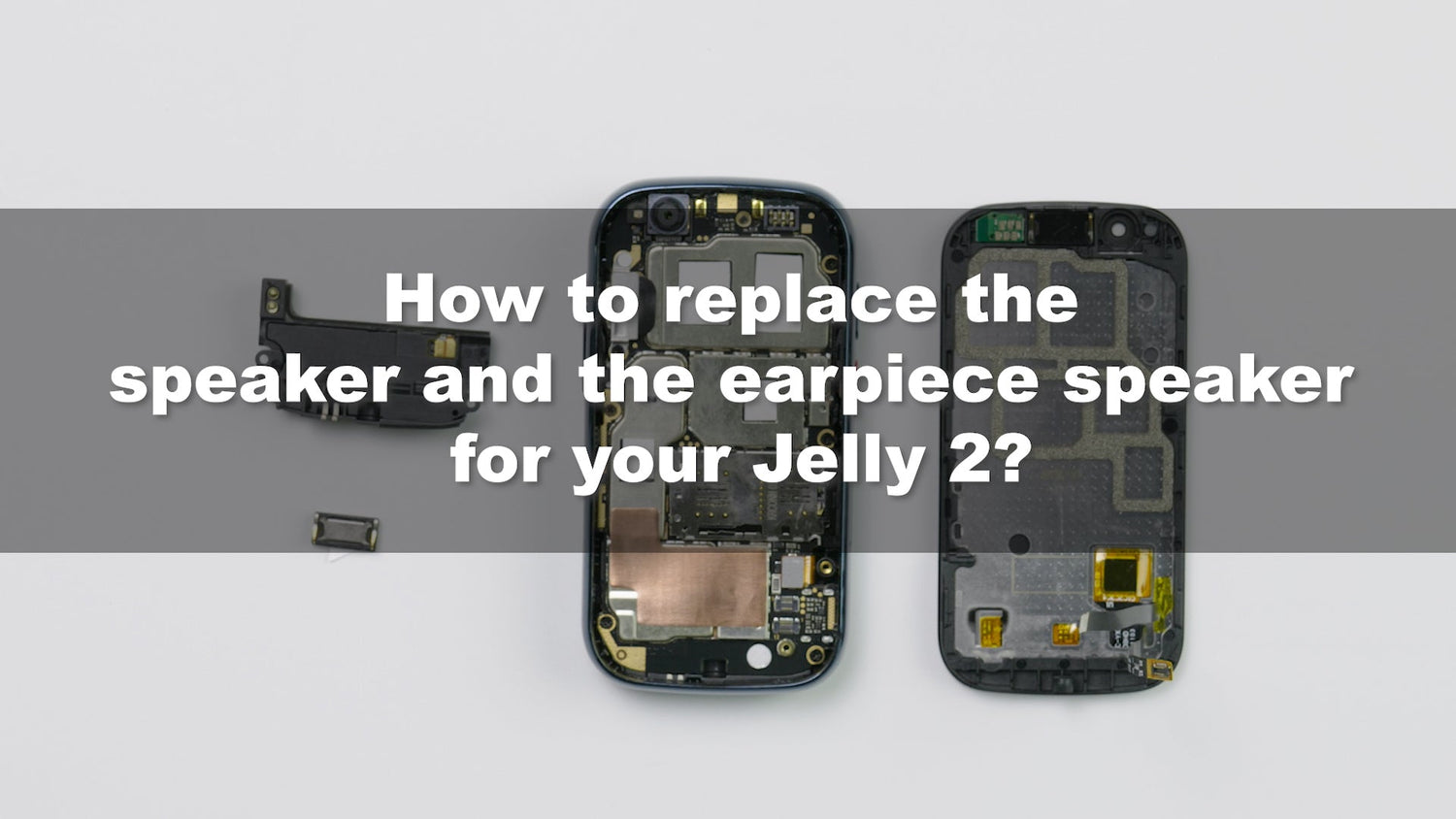

Unihertz Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Tutorial

This tutorial will go through the process of replacing the speaker and earpiece speaker assembly of Unihertz Jelly 2 smartphone.

It is important that you read the entire guide and make sure you can complete all the steps before you start to replace the speaker and earpiece speaker assembly of your Unihertz Jelly 2 smartphone. Otherwise, finding a local trained repair specialist to conduct the repair is recommended.

How to Replace the Speaker and Earpiece Speaker Assembly for Unihertz Jelly 2

How to Replace the Speaker and Earpiece Speaker Assembly for Unihertz Jelly 2 Step by Step

Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 01

Step 1

Remove the screw at the bottom of the phone.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 02

Step 2

Please use the suction cup tool to remove the front panel assembly. (Note: there is a cable connection between the front panel assembly and the motherboard.)
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 03

Step 3

Remove the two screws and the fixing brackets at the connection between the motherboard and the front panel assembly.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 04

Step 4

Disconnect the two cable interfaces connecting the front panel assembly and the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 05

Step 5

Remove the earpiece speaker on the back of the front panel.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 06

Step 6

Take out the replacement earpiece speaker and tear off the double-sided tape protective film on the replacement earpiece speaker gently.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 07

Step 7

Install the replacement earpiece speaker. (Note: the contact position is above.)
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 08

Step 8

Remove the seven screws and the fixing brackets on the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 09

Step 9

Disconnect the two cable interfaces on the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 10

Step 10

Remove the SIM card tray.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 11

Step 11

Use a crowbar to open the motherboard from the direction of the volume button, and then remove the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 12

Step 12

Use a crowbar to remove the speaker assembly.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 13

Step 13

Transfer the cooling cotton on the back of the original speaker assembly to the replacement speaker assembly.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 14

Step 14

Install the replacement speaker assembly.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 15

Step 15

Install the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 16

Step 16

Plug in the two cable interfaces on the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 17

Step 17

Install the fixing bracket and the seven screws on the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 18

Step 18

Plug in the 2 cable interfaces connecting the front panel assembly and the motherboard.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 19

Step 19

Install the fixing bracket and the two screws at the connection between the motherboard and the front panel assembly.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 20

Step 20

Install the front panel assembly.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 21

Step 21

Install the screw under the phone.
Jelly 2 Speaker and Earpiece Speaker Assembly Replacement Step 22

Step 22

Install the SIM card tray.
