Unihertz Titan Pocket Battery Replacement Tutorial

Unihertz Titan Pocket Battery Replacement Tutorial

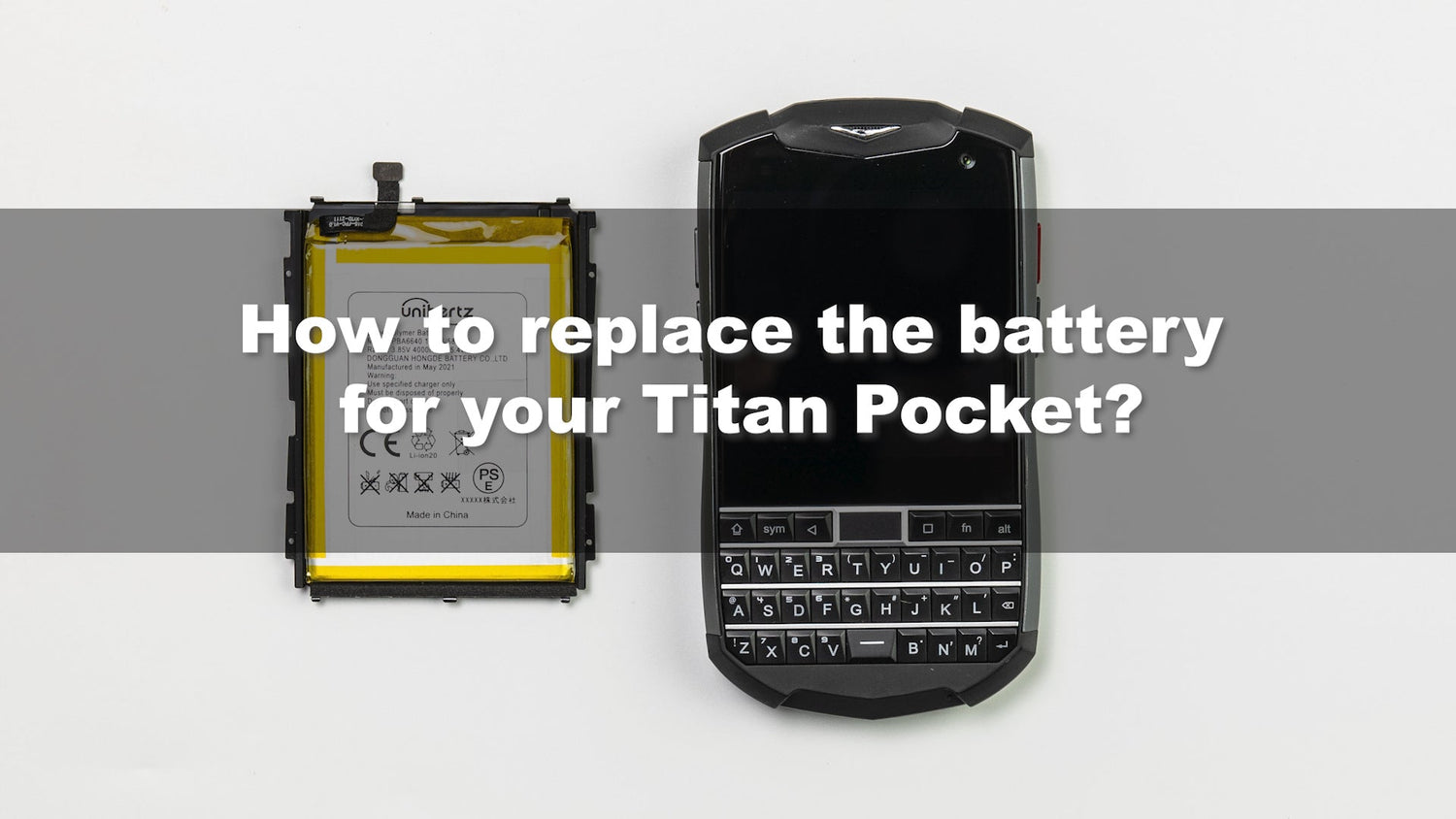

This tutorial will go through the process of replacing the battery of Unihertz Titan Pocket smartphone.
Unihertz Titan Pocket Battery Replacement Tutorial

This tutorial will go through the process of replacing the battery of Unihertz Titan Pocket smartphone.

It is important that you read the entire guide and make sure you can complete all the steps before you start to replace the battery of your Unihertz Titan Pocket smartphone. Otherwise, finding a local trained repair specialist to conduct the repair is recommended.

How to Replace the Battery for Unihertz Titan Pocket

How to Replace the Battery for Unihertz Titan Pocket Step by Step

Titan Pocket Battery Replacement Step 01

Step 1

Remove the four screws from the rear panel and then remove the rear panel.
Titan Pocket Battery Replacement Step 02

Step 2

Remove the three screws from the speaker assembly and then remove the speaker assembly.
Titan Pocket Battery Replacement Step 03

Step 3

Pry up the interface cables between the battery and the motherboard and then remove the battery.
Titan Pocket Battery Replacement Step 04

Step 4

Install the replacement battery and then plug in the cable interface between the battery and the motherboard.
Titan Pocket Battery Replacement Step 05

Step 5

Install the speaker assembly and then tighten the three screws on it.
Titan Pocket Battery Replacement Step 06

Step 6

Install the rear panel and then tighten the four screws on it.
Titan Pocket Battery Replacement Step 07

Step 7

Install the SIM card tray.

Step 1

Remove the four screws from the rear panel and then remove the rear panel.
Titan Pocket Battery Replacement Step 01

Step 2

Remove the three screws from the speaker assembly and then remove the speaker assembly.
Titan Pocket Battery Replacement Step 02

Step 3

Pry up the interface cables between the battery and the motherboard and then remove the battery.
Titan Pocket Battery Replacement Step 03

Step 4

Install the replacement battery and then plug in the cable interface between the battery and the motherboard.
Titan Pocket Battery Replacement Step 04

Step 5

Install the speaker assembly and then tighten the three screws on it.
Titan Pocket Battery Replacement Step 05

Step 6

Install the rear panel and then tighten the four screws on it.
Titan Pocket Battery Replacement Step 06

Step 7

Install the SIM card tray.
Titan Pocket Battery Replacement Step 07
