Unihertz Titan Battery Replacement Tutorial

This tutorial will go through the process of replacing the battery of Unihertz Titan smartphone.
Unihertz Titan Battery Replacement Tutorial

This tutorial will go through the process of replacing the battery of Unihertz Titan smartphone.

It is important that you read the entire guide and make sure you can complete all the steps before you start to replace battery of your Unihertz Titan smartphone. Otherwise, finding a local trained repair specialist to conduct the repair is recommended.

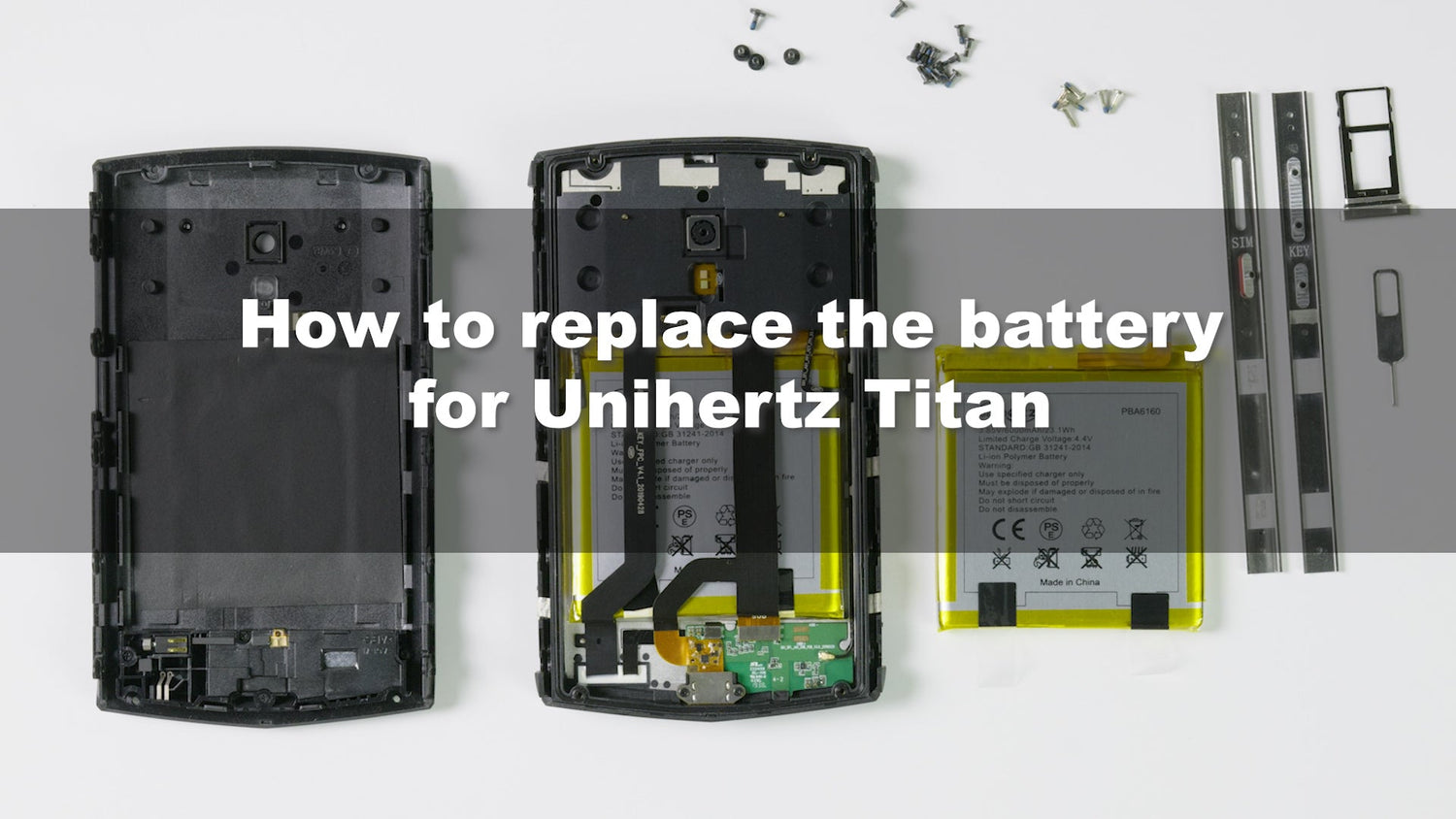

How to Replace the Battery for Unihertz Titan

How to Replace the Battery for Unihertz Titan Step by Step

Titan Battery Tutorial Step 01

Step 1

Remove the three screws from the right edge bezel, remove the right edge bezel (Be careful not to drop the buttons)
Titan Battery Tutorial Step 02

Step 2

Remove the three screws from the left edge bezel, remove the SIM card tray, and remove the left edge bezel(Be careful not to drop the buttons)
Titan Battery Tutorial Step 03

Step 3

Remove the six screws on the right side of the device body
Titan Battery Tutorial Step 04

Step 4

Remove the six screws on the left side of the device body
Titan Battery Tutorial Step 05

Step 5

Remove the four screws that fix the rear panel
Titan Battery Tutorial Step 06

Step 6

Remove the rear panel gently
Titan Battery Tutorial Step 07

Step 7

Remove the new battery for replacement
Titan Battery Tutorial Step 08

Step 8

Remove the seven screws from the antenna module
Titan Battery Tutorial Step 09

Step 9

Remove the antenna module gently
Titan Battery Tutorial Step 10

Step 10

Pry up and disconnect the two battery connectors from the motherboard
Titan Battery Tutorial Step 11

Step 11

Pull off the battery adhesive strips (Be careful not to rip them off).
If you accidentally rip off the strips, use tweezers to gently rotate to pull out the remaining strips.
Titan Battery Tutorial Step 12

Step 12

Pry up the original battery gently and clean up the residual adhesive strip.
Titan Battery Tutorial Step 13

Step 13

Check whether the interface cable is loose after removing the battery
Titan Battery Tutorial Step 14

Step 14

  • Place the replacement battery in the location of the red frame.
  • Remove the protective film from the new battery adhesive strip.
  • Press the replacement battery gently to make it more fixed
Titan Battery Tutorial Step 15

Step 15

Reconnect the two interface cables, and check whether other interfaces are loose
Titan Battery Tutorial Step 16

Step 16

Install the antenna module
Titan Battery Tutorial Step 17

Step 17

Install the rear panel, then tighten the twelve screws on both sides of the device body
Titan Battery Tutorial Step 18

Step 18

Install the SIM card tray
Titan Battery Tutorial Step 19

Step 19

Install both the edge bezels and tighten the six screws used to fix them
