This tutorial will go through the process of replacing the speaker of Unihertz Titan smartphone.
Unihertz Titan Battery Replacement Tutorial Reading Unihertz Titan Speaker Assembly Replacement Tutorial 3 minutes Next Unihertz Atom XL Screen Replacement Tutorial
Unihertz Titan Loudspeaker Assembly Tutorial

This tutorial will go through the process of replacing the speaker of Unihertz Titan smartphone.

It is important that you read the entire guide and make sure you can complete all the steps before you start to replace the speaker of your Unihertz Titan smartphone. Otherwise, finding a local trained repair specialist to conduct the repair is recommended.

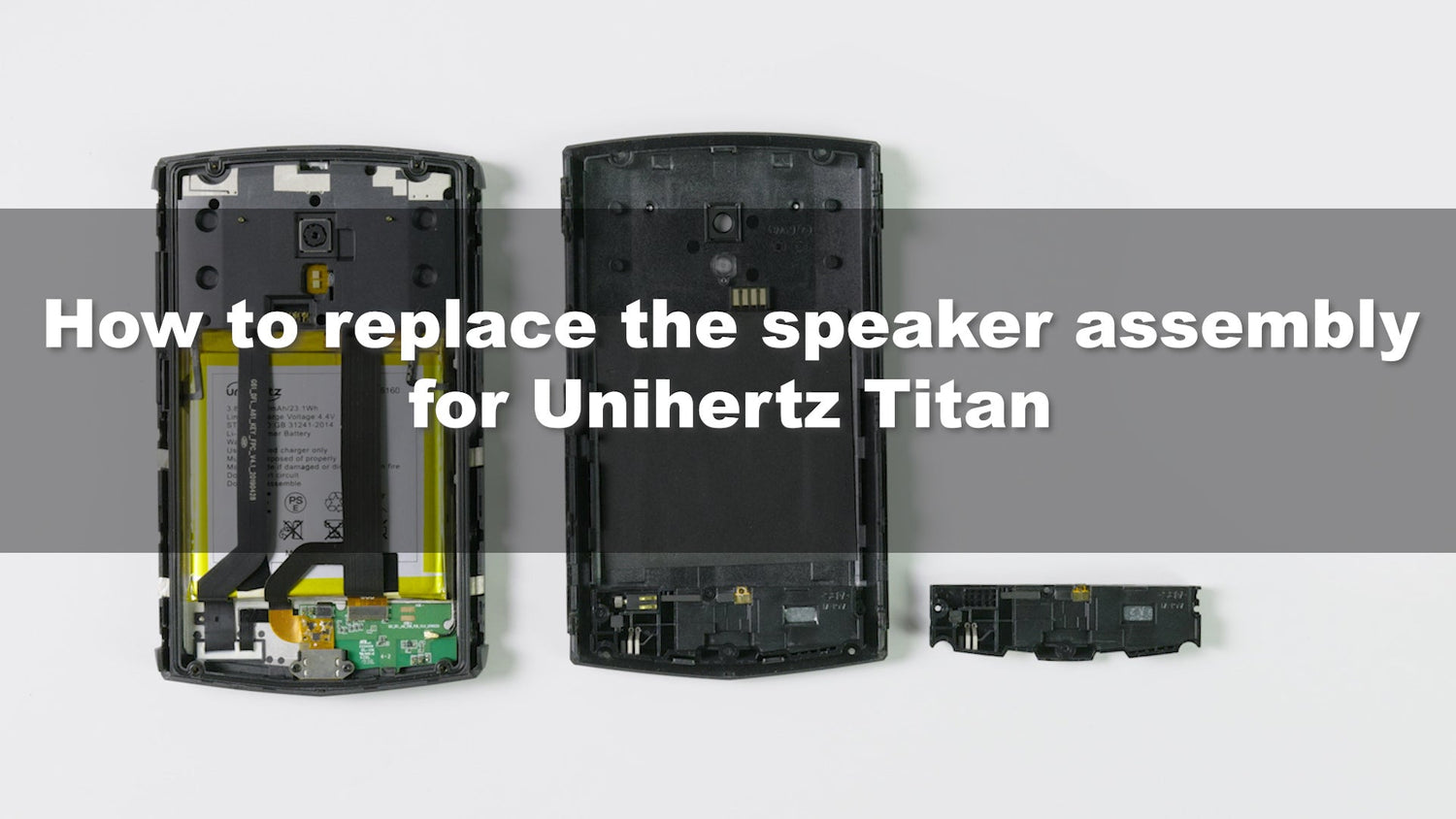

How to Replace the Speaker Assembly for Unihertz Titan Tutorial

How to Replace the Speaker Assembly for Unihertz Titan Step by Step

Titan Loudspeaker Assembly Tutorial Step 01

Step 1

Remove the three screws from the right edge bezel, remove the right edge bezel(Be careful not to drop the buttons)
Titan Loudspeaker Assembly Tutorial Step 02

Step 2

Remove the three screws from the left edge bezel, remove the SIM card tray, and remove the left edge bezel(Be careful not to drop the buttons)
Titan Loudspeaker Assembly Tutorial Step 03

Step 3

Remove the six screws on the right side of the device body
Titan Loudspeaker Assembly Tutorial Step 04

Step 4

Remove the six screws on the left side of the device body
Titan Loudspeaker Assembly Tutorial Step 05

Step 5

Remove the four screws that fix the rear panel
Titan Loudspeaker Assembly Tutorial Step 06

Step 6

Remove the rear panel gently
Titan Loudspeaker Assembly Tutorial Step 07

Step 7

Find the speaker assembly
Titan Loudspeaker Assembly Tutorial Step 08

Step 8

Remove the four screws that fix the speaker assembly
Titan Loudspeaker Assembly Tutorial Step 09

Step 9

Remove the speaker assembly gently
Titan Loudspeaker Assembly Tutorial Step 10

Step 10

Remove the new speaker assembly for replacement from the bag
Titan Loudspeaker Assembly Tutorial Step 11

Step 11

Note: Please use tweezers to remove the vibrator from the original speaker assembly and install it on the replacement speaker assembly
Titan Loudspeaker Assembly Tutorial Step 12

Step 12

Install the new speaker assembly to the rear panel
Titan Loudspeaker Assembly Tutorial Step 13

Step 13

Tighten the four screws used to fix the speaker assembly
Titan Loudspeaker Assembly Tutorial Step 14

Step 14

Install the rear panel, then tighten the twelve screws on both sides of the device body
Titan Loudspeaker Assembly Tutorial Step 15

Step 15

Install both the edge bezels and tighten the six screws used to fix them
Titan Loudspeaker Assembly Tutorial Step 16

Step 16

Install the SIM card tray
