Unihertz Titan Camera Replacement Tutorial

This tutorial will go through the process of replacing the camera of Unihertz Titan smartphone.
Unihertz Titan Camera Replacement Tutorial

This tutorial will go through the process of replacing the camera of Unihertz Titan smartphone.

It is important that you read the entire guide and make sure you can complete all the steps before you start to replace the screen of your Unihertz Titan smartphone. Otherwise, finding a local trained repair specialist to conduct the repair is recommended.

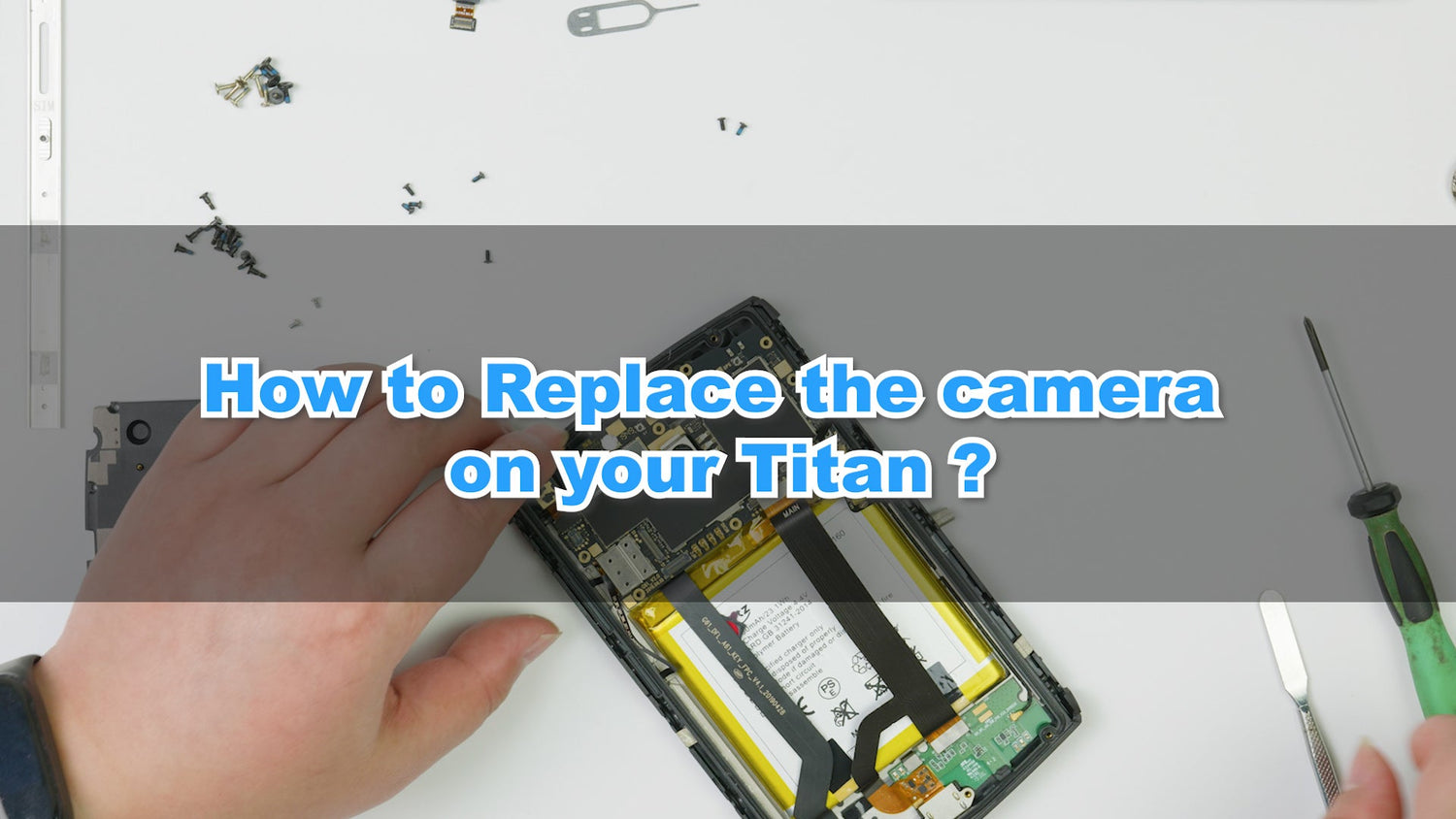

How to Replace the Camera for Unihertz Titan

How to Replace the Camera for Unihertz Titan Step by Step

Titan Camera Replacement Step 01

Step 1

Remove the three screws from the right edge bezel, remove the right edge bezel (Be careful not to drop the buttons)

Step 2

Remove the three screws from the left edge bezel, remove the SIM card tray, and remove the left edge bezel (Be careful not to drop the buttons)
Titan Camera Replacement Step 03

Step 3

Remove the four screws that fix the rear panel
Titan Camera Replacement Step 04

Step 4

Remove the six screws on the right side of the device body
Titan Camera Replacement Step 05

Step 5

Remove the six screws on the left side of the device body
Titan Camera Replacement Step 06

Step 6

Remove the rear panel gently
Titan Camera Replacement Step 07

Step 7

Remove the seven screws from the antenna module
Titan Camera Replacement Step 08

Step 8

Remove the antenna module gently
Titan Camera Replacement Step 09

Step 9

Pry open the 7 cable ports connected to the motherboard
Titan Camera Replacement Step 10

Step 10

Remove the two screws on the motherboard
If you accidentally rip off the strips, use tweezers to gently rotate to pull out the remaining strips.
Titan Camera Replacement Step 11

Step 11

Remove the motherboard (be careful with the cables on the right side of the motherboard)
Titan Camera Replacement Step 12

Step 12

Remove the front camera
Titan Camera Replacement Step 13

Step 13

Remove the rear camera
Titan Camera Replacement Step 14

Step 14

Install a new front-facing camera
Titan Camera Replacement Step 15

Step 15

Install a new rear camera
Titan Camera Replacement Step 16

Step 16

Install the motherboard Remove the protective film from the new camera
Titan Camera Replacement Step 17

Step 17

Connect the 4 cable ports on the motherboard
Titan Camera Replacement Step 18

Step 18

Install the 2 screws on the motherboard
Titan Camera Replacement Step 19

Step 19

Connect the 3 cable ports on the motherboard
Titan Camera Replacement Step 20

Step 20

Install the diversity antenna bracket and 7 screws
Titan Camera Replacement Step 21

Step 21

Install the back shell
Titan Camera Replacement Step 22

Step 22

Install the 12 screws on both sides of the fuselage
Titan Camera Replacement Step 23

Step 23

Install side strips and 6 screws Install the SIM card tray
