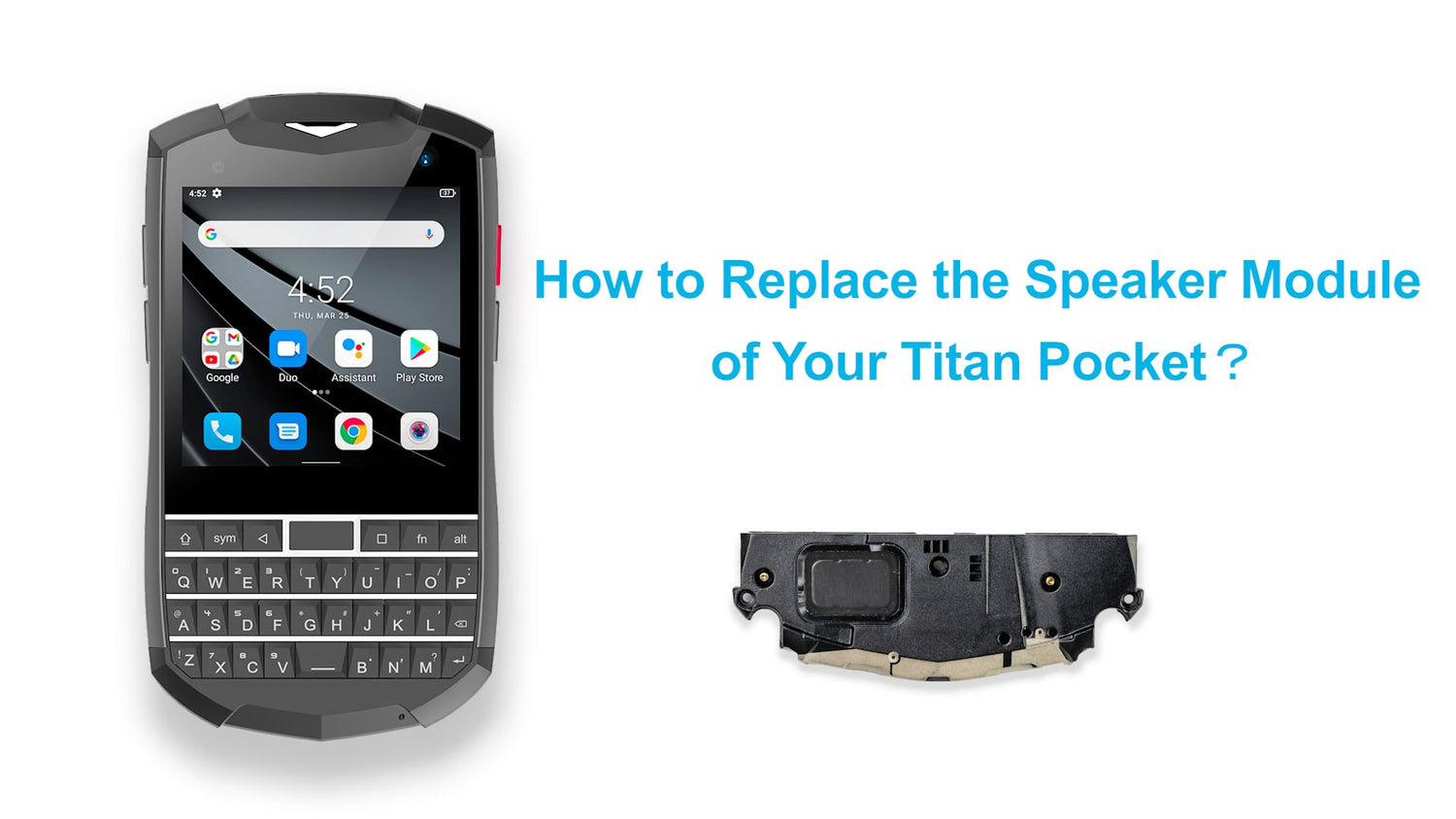

Unihertz Titan Pocket Speaker Module Replacement Tutorial

This tutorial will go through the process of replacing the Speaker Module of Unihertz Titan Pocket Smartphone.

It is important that you read the entire guide and make sure you can complete all the steps before you start to replace the Speaker Module of your Unihertz Titan Pocket smartphone. Otherwise, finding a local trained repair specialist to conduct the repair is recommended.

How to Replace the Speaker Module of Unihertz Titan Pocket

How to Replace the Speaker Module of Unihertz Titan Pocket Step by Step

	Step 01 Remove the four screws on the back cover.
	Step 02 Take off the back cover.
	Step 03 Unscrew the three screws on the speaker module.
	Step 04 Remove the speaker module.
	Step 05 Take out the new speaker module and transfer the vibration motor from the old speaker module to the new one.
	Step 06 Install the new speaker module (make sure to check if the interface between the battery and the motherboard is loose).
	Step 07 Tighten the three screws to secure the speaker module.
	Step 08 Install the back cover.
	Step 09 Tighten the four screws to secure the back cover.
